FEELWORLD F6 PLUS 6 inch Touch Screen 3D LUT Camera DSLR Field Monitor 1920×1080 HD 4K HDMI

Overview

The Feelworld F6 Plus X is a 5.5 inch small high-brightness touchscreen enabled field monitor with 3D LUT support, HDMI 4K and Full HD 1920×1080 resolution. For easy outdoor monitoring even in bright sunlight, the F6 Plus X has 1600 cd/m² brightness, HDR support and a 160° viewing angle. It also allows for inputs and outputs video signals up to DCI 4K24 and UHD 4K30 while the display on the monitor’s screen is at upto 1080p60.

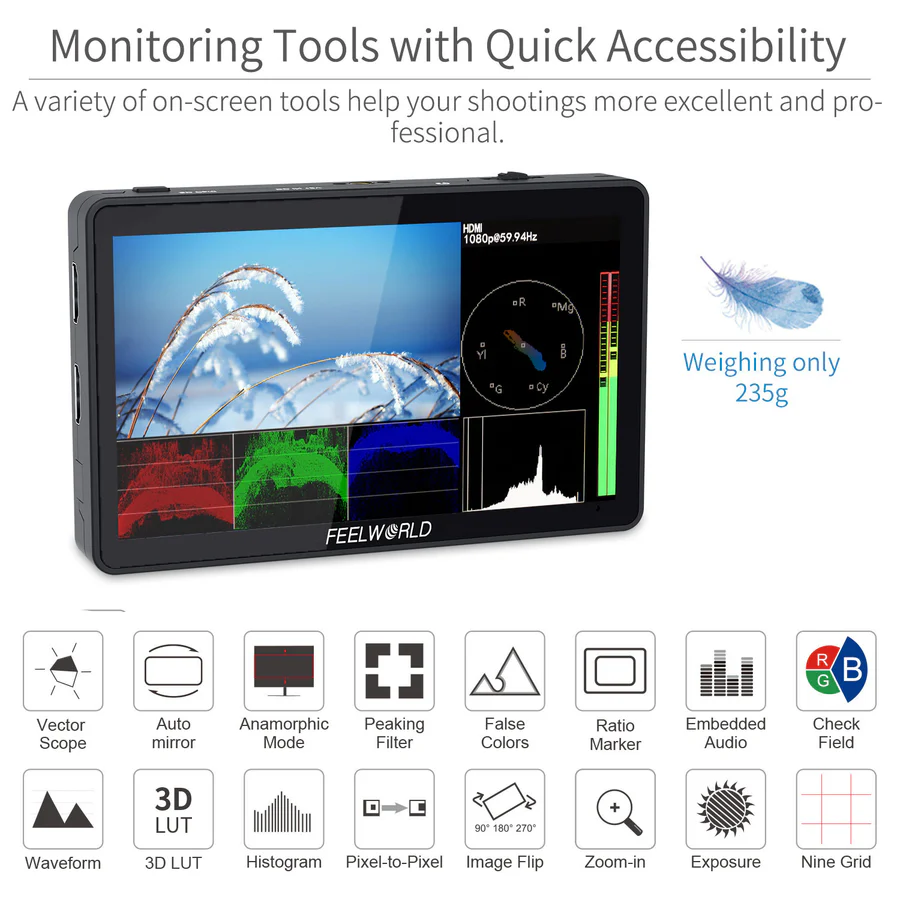

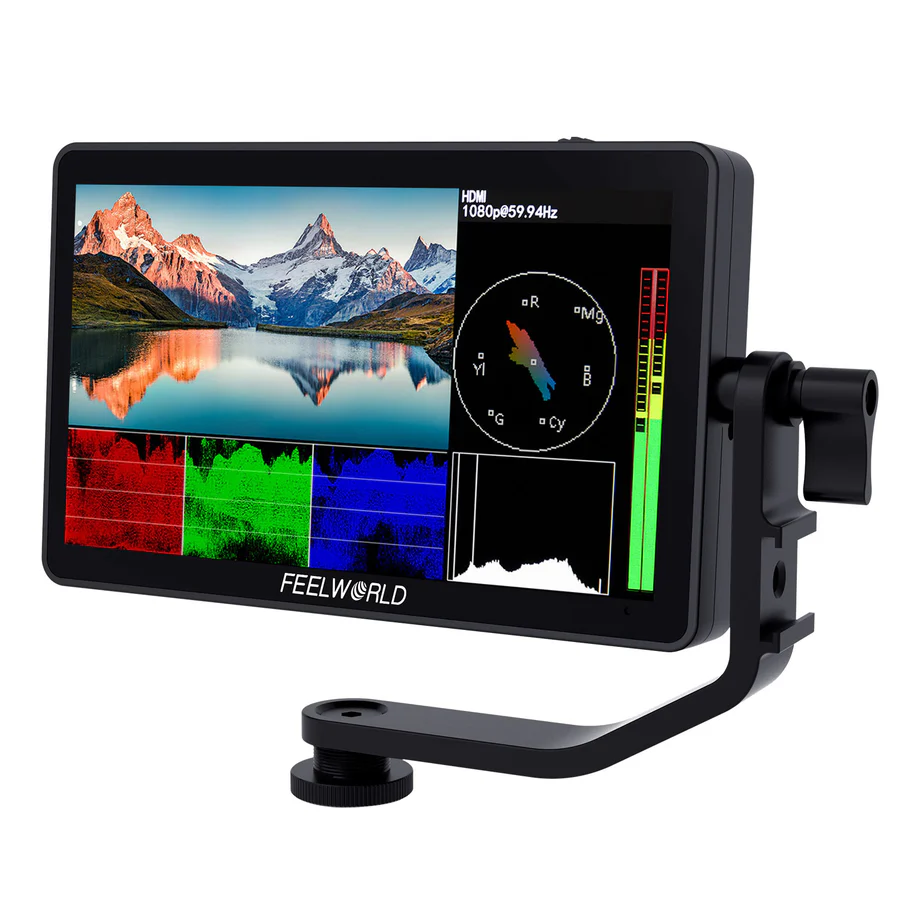

The 5.5″ screen has  touch capabilities enabling you to zoom your image in and out with a pinch gesture. It is also just big enough to capture the full scope of the frame. The LUT loading function makes color calibration more intuitive and easier to set. You can also upload 3D LUT cube to F6 Plus X via a SD card. With a tilt arm included, this monitor can rotate at an angle of 360° for viewing. It also includes a shoe mount of its own for the addition of such other accessories as a microphone, wireless receiver or LED light. To maximize on flexibility, F6 Plus X has 1/4″-20 mounting threads at the top, side, and bottom to allow for use on camera rigs of all configurations.

For powering options, this monitor has a built-in battery plate that fits Sony L-series batteries or via the integrated USB-C, or DC power input ports. The monitor has a DC output port, through which you can power your camera from a dummy battery (optional), to extend your camera’s run-time.

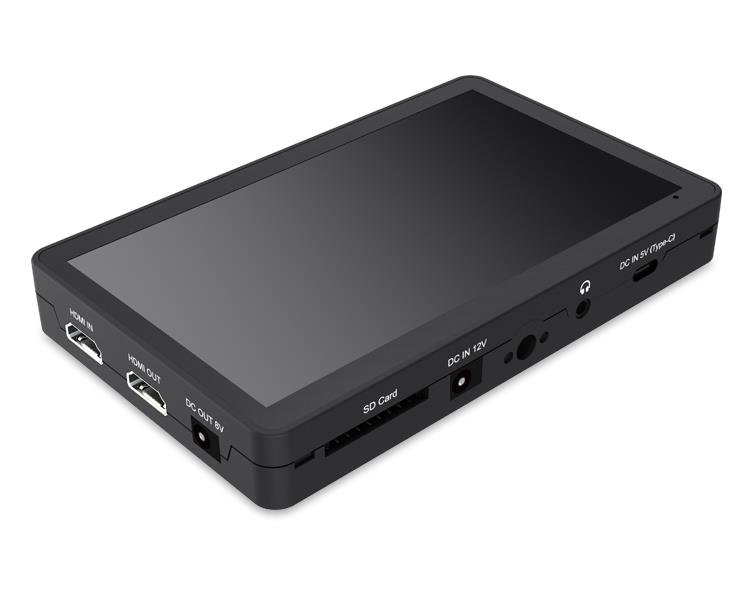

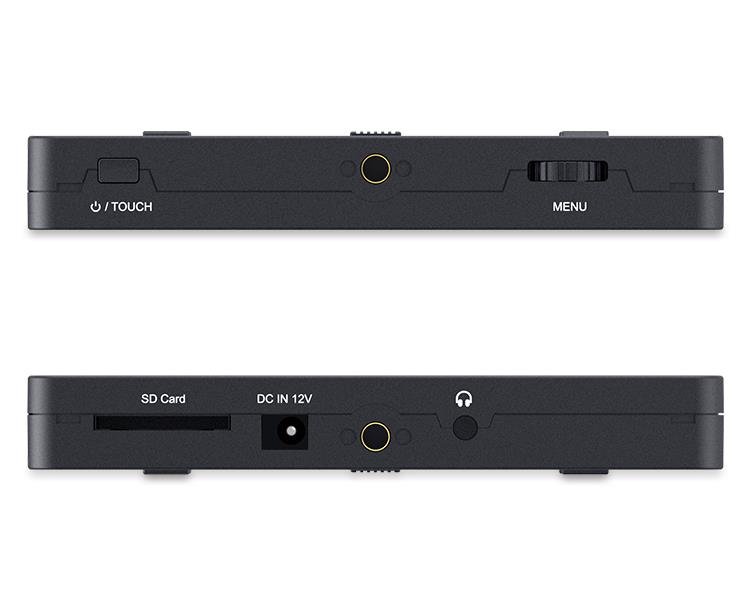

Input/ Output

• Input: 1 X 4K HDMI, 1 X Type-C
• Output: 1X 4K HDMI, DC Output
• Audio:  3.5mm Stereo Headphone
• HDMI Input/ Output Support Format: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General

• Input Voltage: DC7～24V
• Consumption: ≤9W
• Connector: DC
• Working Temperature: -20°C~55°C
• Storage Temperature: -30°C~65°C
• Install Way: ¼-20 thread points (top, bottom, right)
• Unit Size: 148Lx93Hx20D (mm)
• Unit Weight: 235g
• Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530
• (Note battery not include, need purchase sperate)
